Model

MPP voltage range

Open circuit voltage

Max. input current

Nominal output

Output voltage

Power factor cos phi

Frequency

Harmonic distortion

Max. efficiency

Euro efficiency

Ambient temperature

Heat dissipation

Protection mode

Circuit type

Grid monitoring

Display

Casing

Dimensions (W / H / D)

Weight

Norms

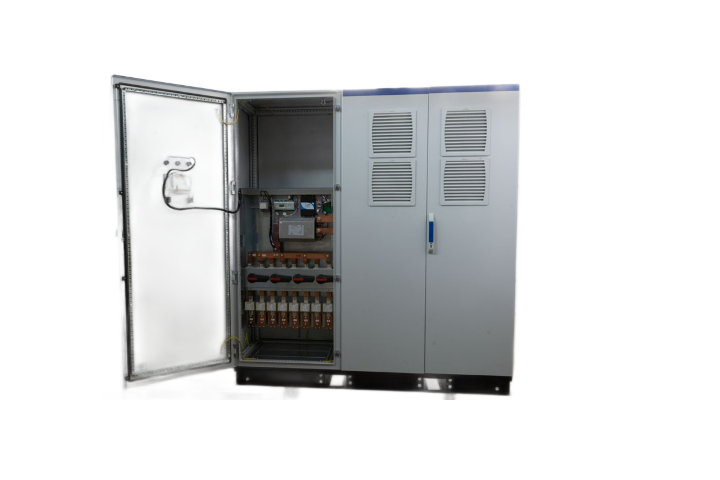

PowerCore 350

450 - 830 V

1000 V

856 A

350000 W

3 x 290 V (±10 %) to external transformer

0.8 inductive, 0.8 capacitive

50 / 60 Hz

< 3 %

98.3 %

98.0 %

-20 to +50 °C

Fan (max. 6420 m³/h)

IP21

Digital control, transformerless

According to country-specific requirements

TFT LC display touch screen

Sheet steel

Not more than 2110 mm / 2400 mm / 850 mm

Not more than 1370 kg

EN 60950-1:2006, EN 50178:1997, EN61000-6-1:2007, EN 61000-6-2:2005, EN61000-6-4:2007, EN 61000-3-11:2000, EN61000-3-12:2005,DIN VDE 0126-1-1:2006-02
